2005 40' Endeavour Pilot Trawler Powercat TrawlerCat
ENDEAVOUR VESSEL WALKTHROUGH
From the aft deck, you can step down molded-in steps onto either swim platform, walk out either wide side deck to the foredeck and flybridge, or step into the main salon via the aluminum and glass door. Once inside the main salon, there is a wrap-around bench seat with storage and expandable table that rises to breakfast bar height and ottoman to port, galley with breakfast bar and stools starboard forward, reclining lounge chair, 41 inch Samsung TV and shelves to starboard. Walk forward and step up into the pilothouse, where you will find the helm forward, helm seat and bench seat aft, navigation desk with ottoman and drawers port aft and a side deck access door on each side. Walk forward and step down to find the guest stateroom to port and the master stateroom forward. Engine room access is via three salon sole hatches and two on the aft deck.
The headroom in the salon is 6'7", 6'6" in the pilothouse, 6'3" in the master stateroom, 6'5" in the master stateroom shower, 6'6" in the guest stateroom and shower, and 6'9" on the flybridge. The master stateroom and guest stateroom berths are 6'7" long.
40' ENDEAVOUR ACCOMMODATIONS
Islena offers a full beam master stateroom forward with a centerline queen size berth and ensuite head with enclosed shower; and a guest stateroom to port with a queen size berth and ensuite head with enclosed shower.
40' ENDEAVOUR SALON
The large salon offers wrap-around seating with storage, large expandable table and ottoman to port, reclining lounge chair and shelves starboard aft space, shelves to starboard behind 41 inch TV, galley countertop with two stools starboard forward, storage cabinetry, Amico vinyl teak & holly sole, opening side and aft windows with Oceanair screens port and starboard and curtains aft, two fans, electric panel and engine room access.
40' ENDEAVOUR GALLEY
The galley is located starboard forward in the salon.
- Force 10 3-burner propane cooktop
- Uline icemaker
- Nova Kool ac/dc refrigerator/freezer
- Below sink Seagull lV water filter with separate faucet valve assembly
- Double stainless steel sink
- Gibraltar earthtone solid surface countertop and backsplash, there is some peel and stick paper for decoration, the surface under is in perfect condition.
- Breakfast bar countertop with two stools
- Storage cabinets, deep drawers (20” x23”x11”) and Pantry (20”x14”x40”)
- Amtico vinyl teak & holly sole
- Magma stainless steel BBQ grill on the aft deck
40' ENDEAVOUR DINING
Dining space is available at the flybridge table and galley/salon countertop or expandable galley table.
40' ENDEAVOUR MASTER STATEROOM
Islena offers a full beam master stateroom forward with a centerline custom mattress (2021) queen size berth (storage under bed), 28” Samsung TV, nightstands, window forward with Oceanair shade, 2 large side windows port and starboard with Oceanair shades, storage drawers and cabinet, 2 hanging lockers, 3 fans, large shelf port, reading lights, Amtico vinyl teak & holly. Ensuite head with enclosed shower, lots of room in cabinetry, faucet replaced (2021) and porcelain toilet. There is some peel and stick paper for decoration, the surface under is in perfect condition.
40' ENDEAVOUR GUEST STATEROOM
The guest stateroom is located to port and offers a queen size berth (Storage under bed), 28” Samsung TV, reading lights, fan, Amtico vinyl teak & holly sole, hanging locker, 4 big storage drawers (23”x20”x8”), shelf, 2 portlights with Peekaboo shades. Ensuite head with enclosed shower, lots of room in cabinetry, faucet replaced (2021) and porcelain toilet.

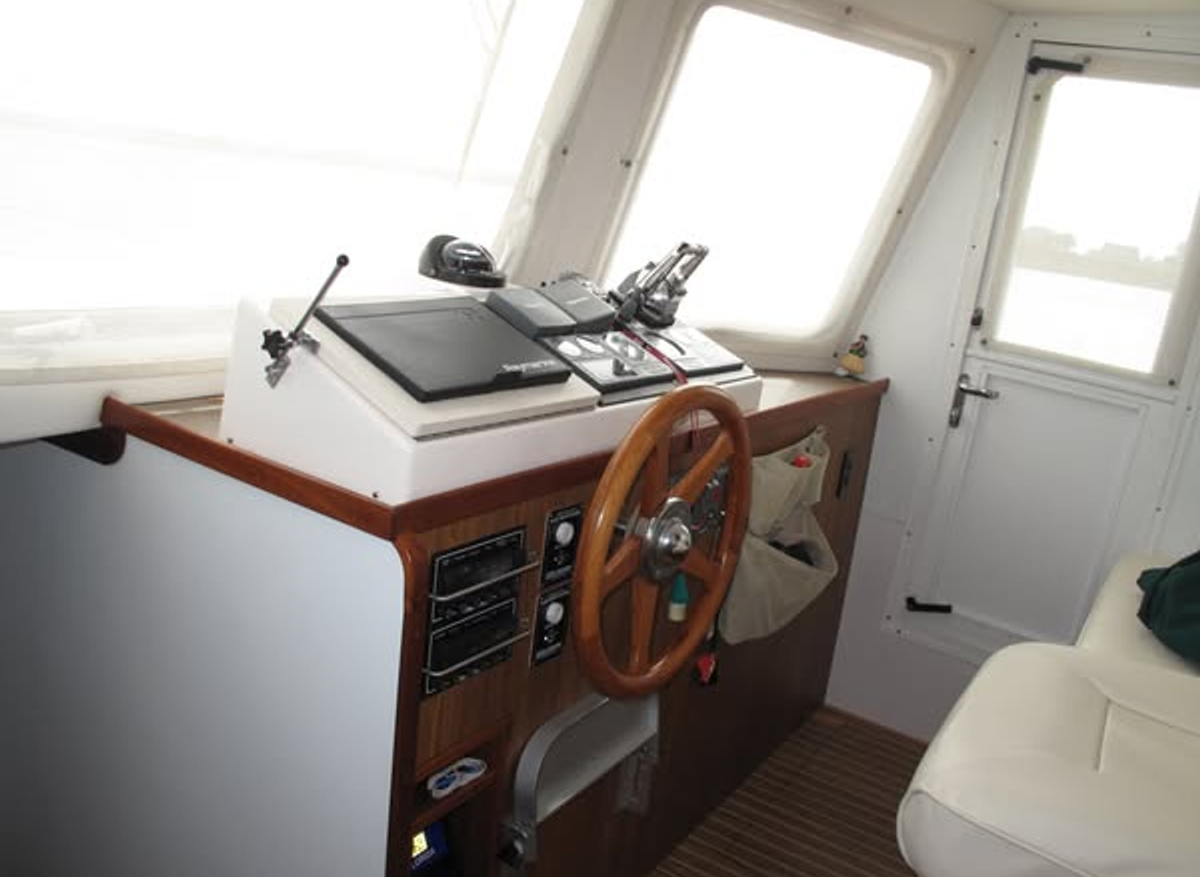

40' ENDEAVOUR PILOTHOUSE
The pilothouse offers a side deck access Dutch door on each side, helm forward, helm seat and bench seat aft, opening aft windows with screens and front windows have 2 sets of shades (inside and outside), fans, reading light, Amtico vinyl teak & holly sole, desk and storage port aft, storage drawers and cabinet, windshield thermal shades and an opening center windshield with AFI wiper.
40' ENDEAVOUR FLYBRIDGE
The flybridge offers a hardtop, overhead hatch over the forward helm, Eisenglass enclosure forward, helm bench seat, bench seat with storage and expandable hi/lo table aft, non-skid deck, molded steps to each side deck, 2 fans and four rod holders.
40' ENDEAVOUR AFTDECK
The aft deck offers non-skid deck, storage cabinetry and work top aft, molded-in steps to each swim platform, under-step propane locker to starboard and under-step storage port, LED flood light, hot/cold fresh water shower, Magma stainless steel BBQ grill and engine room/generator access. Polished stainless steel dinghy davit system with wired remote electronic toggle switches for easy retrieval and deployment.
40' ENDEAVOUR ELECTRONICS
- Raymarine Quantum 2 Q24D Radar Doppler w/10m Power Data Cables (2020)
- (2) Raymarine Axiom 12 RV 12" MFD’s w/RealVision 3D Sonar & Navionics+ Chart (2020)
- Vesper AIS XB-8000 (2020)
- Victron Blue Solar Charge Controller 150 / 70 – Tr
- Victron MultiPlus - ll 12 / 3000 / 120 Charger Inverter (Sept 2025)
- Raymarine autopilot with wireless remote at the lower helm
- Floscan fuel monitor lower helm
- Raymarine ST60 depth sounder both helms
- Standard Horizon Quantum GX5500S VHF at both helms ST6002
- Ritchie Powerdamp 4.5 inch magnetic compass on the flybridge and at the lower helm
- Fusion MS-RS70 NSX Stereo with Polk speakers
- 3 Samsung TV’s, 41” in salon and one 28” in each stateroom
40' ENDEAVOUR ELECTRICAL SYSTEM
- Northern Lights M673L2.3 6 KW generator with approximately 860 hours
- Battery charger - Xantrex Truecharge 40-2 for house and starter batteries. Noco 12 volt, 10 amp for thruster battery.

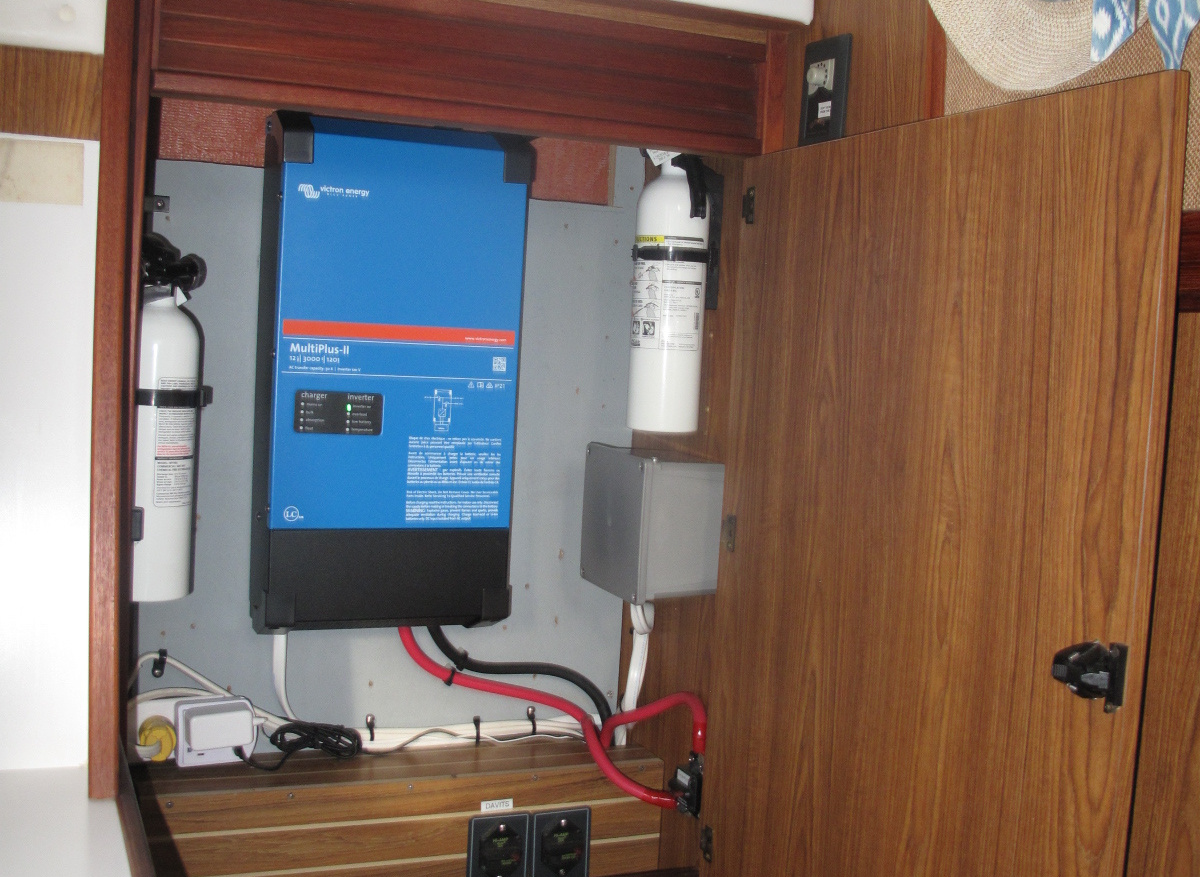

-New Sept. 2025 Victron Multiplus ll 12/3000/120 Charger Inverter currently used as inverter
- Xantrex Pathmaker battery combiner
- Paneltronics electrical panels
- 2X 375 watt LG solar panels with Victron Blue Solar Controller 150 / 70 Tr
- 12 vdc outlet on the flybridge and at the lower helm
- 2X 30 amp Eel shorepower cords (2024)
- 1X 50 amp splitter
- 5X Blue Sea rotary battery switches. One for each engine, generator, one parallel and one house switch
- 2X West Marine 8D AGM 225 aH each house batteries (2025)
- 1X West Marine 4D 1350 CCA sealed AGM for bow thruster
- 2X West Marine group 27 AGM 900 MCA sealed AGM one for each engine
- Galvanic isolator – Zinc Saver ll by Professional Mariner (50 amp)
- 40' ENDEAVOUR ENGINE/MECHANICAL EQUIPMENT

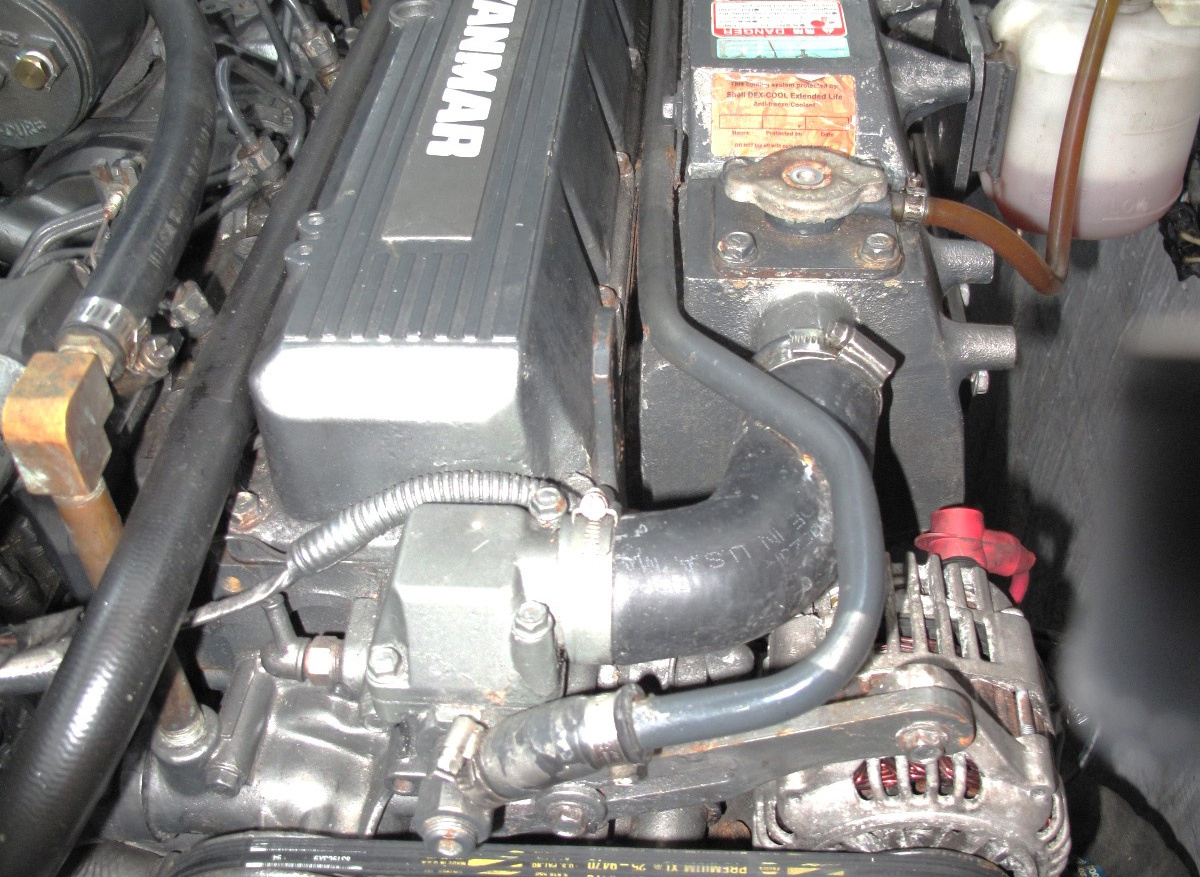

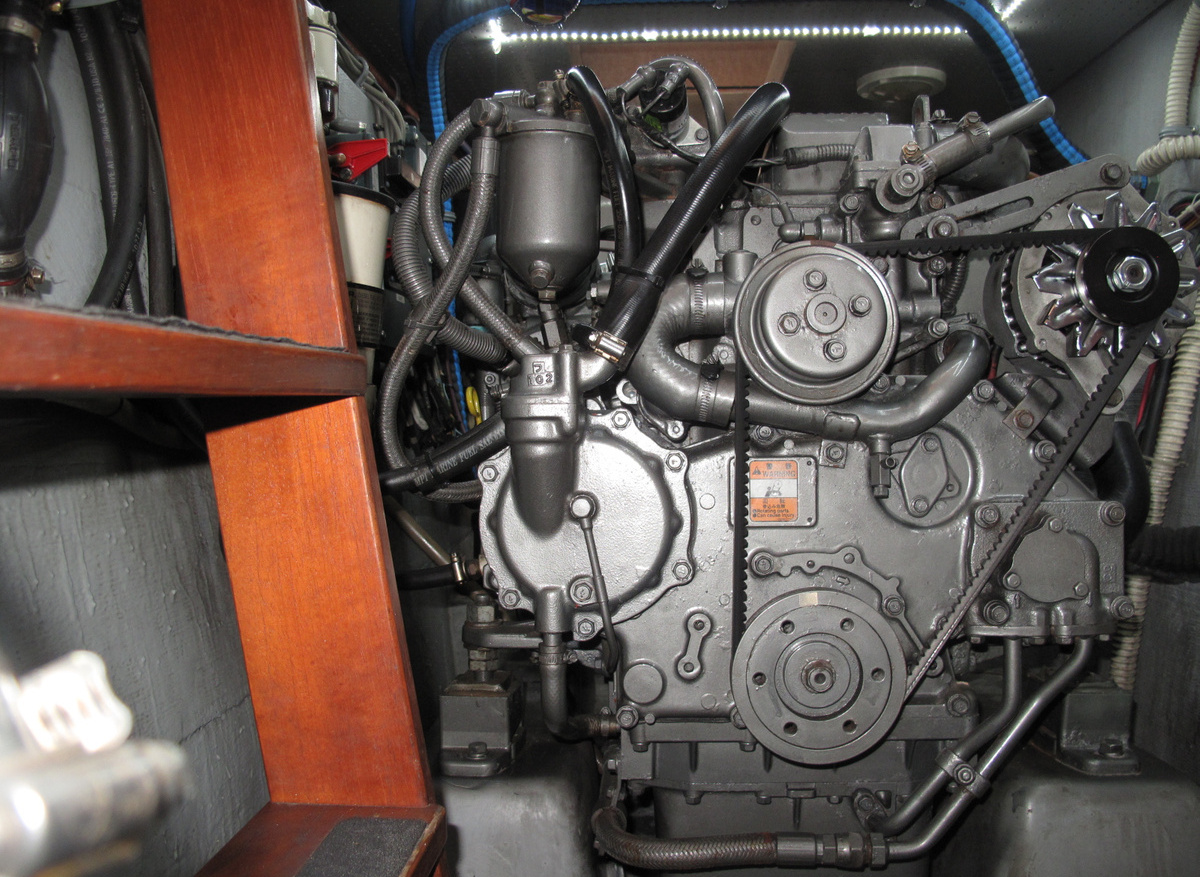

- Twin Yanmar 4LHA-STP 240 HP main engines with approximately 3,600 hours. Oil changes every 100 – 150 hours and oil samples taken every other oil change
- ZF 63 2.5 gearboxes
- Lasdrop dripless shaft seals (2021)
- Teleflex electronic throttle engine controls on both helm stations
- Keyed switches with push button shutdowns at helm console
- Hynautic hydraulic steering system
- Groco sea strainers
- Marelon seacocks for both engines, generator, AC and both black water overboard thru hulls. Both engines and black water starboard seacocks replaced (2024)
- Racor 900FH fuel filter for each main engine
- Racor 500 fuel filter for the generator
- Reverso fuel polishing system
- Reverso OP-6 12 volt oil change system for each main engine and the generator
- 2X Cruisair 16,000 BTU reverse cycle air conditioning/heating system
- Force 10 11 gallon water heater
- Jabsco fresh water system pump (2025)
- Wema tank gauges
- Porcelain toilets
- Tankwatch holding tank level monitor system
- Jabsco electric heads
40' ENDEAVOUR DECK EQUIPMENT
- Anchorlift windlass (2021) with foot controls. Floor decking (marine plywood) supporting windlass replaced and fiberglassed (2021)
- Delta 55 lb anchor with 100 foot of G4 5/16” HT chain and 100 foot line
- Spare anchor – Danforth style S1600
- Stainless steel rails
- Stainless steel deck hardware
- Foredeck bow rail seats
- Non-skid decks
- Foredeck under-deck storage lockers
- Foredeck bench seat
- Dock water connection starboard aft
- Freshwater engine flush connection for both engines starboard aft (2021)
- Stainless steel swim ladder (2021)
40' ENDEAVOUR TENDER
- Sirocco 10.2 foot (2019)
- Mercury four stroke 15 HP – (2020)
- Endeavour davit system with Warn RT30 electric winches
40' ENDEAVOUR SAFETY AND FIRE PROTECTION
- 4X Fire extinguishers (2021)
- 3X Carbon monoxide detector (2025)
- 2X fire detector
- 3X Elide Fire Extinguisher Balls (2023) over each engine and generator
- 2X Jabsco model 1950 bilge pumps
- Bilge water alarm and safety switches – Ultra Senior Pump Switch
- ACR EPIRB (2021)
- Lifesling2 overboard recovery system
40' ENDEAVOUR EXCLUSIONS
- Sellers' personal belongings
ENGINES
Engine 1
• Engine Make: Yanmar
• Engine Model: 4LHA-STP
• Engine Year: 2005
• Engine Type: Inboard
• Drive Type: Direct
• Power HP: 240
• Fuel Type: Diesel
• Hours: 3600
Engine 2
• Engine Make: Yanmar
• Engine Model: 4LHA-STP
• Engine Year: 2005
• Engine Type: Inboard
• Drive Type: Direct
• Power HP: 240
• Fuel Type: Diesel
• Hours: 3600
- Additional information
- More pictures are available at Boat Trader.com
https://www.boattrader.com/boat/2005-endeavour-40-trawlercat-9955680/ - Condition
- Numerous updates and upgrades and is in very nice condition
