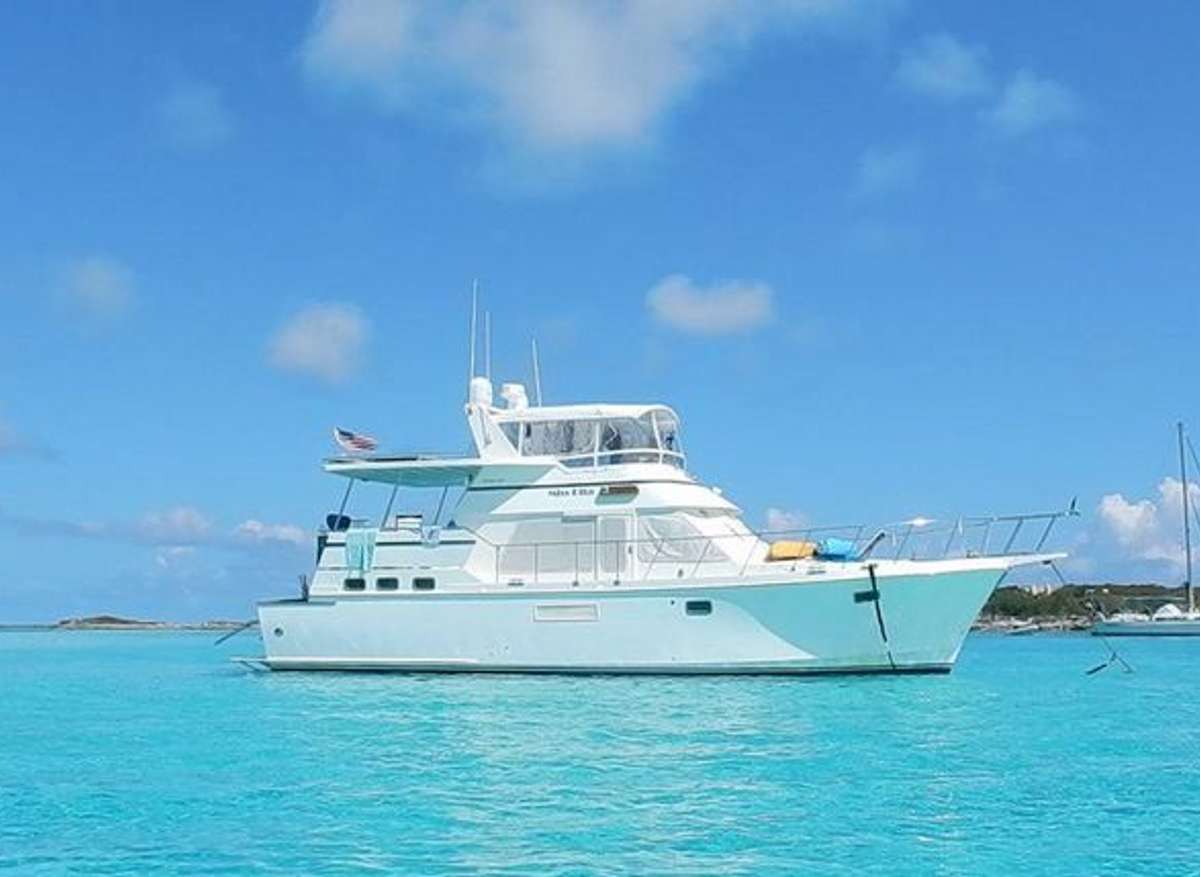

2004 Heritage East 46 Motor Yacht
Her owners optimized her for months at anchor in the Bahamas: 1,520W solar, (5) 8D AGM batteries (~1,250Ah), 210A Prestolite/ Balmar-regulated alternator, dual 2,500W Xantrex inverter/chargers, 300 gallons of fresh water, and 580 gallons of fuel for a ~1,200-mile range (10% reserve). Add in new Garmin Doppler radar, large ground tackle, and smart shore-power gear and you’ve got a turnkey, blue-water, Loop-capable platform.
Builder/Model: Heritage East 46 (42+4) Cockpit Motor Yacht
Year: 2004 | LOA: 46’ | Beam: 14’6” | Draft: 4’6”
Displacement: ~45,500 lbs (thicker ~1" hull per owner notes)
Hull: Semi-displacement, solid keel (~1’)
Power: Twin Cummins 6BTA 5.9 220 HP (approx. 4304/4300 hrs)
Generator: Onan/Kubota 9 kW (~1425 hrs)
Tanks: Fuel 580 gal | Water ~300 gal | Holding 60 gal
Basic Boat Info
Boat Name: Miss Rita
Make: Heritage East
Model: 46 Motor Yacht
Year: 2004
Condition: Used
Category: Power
Designer: DeFever Yachts
Construction: Fiberglass
Boat Hull ID: XVTF4601K304
Has Hull ID: Yes
Keel Type: Other Keel
Range: 1,199.11 mi
Dimensions
Length: 46 ft
Length Overall: 46 ft
Waterline Length: 9'2 ft
Beam: 14'6 ft
Max Draft: 4'6 ft
Bridge Clearance: 19 ft
Cabins Count: 2
Engines / Speed
Engines: 2
Engine #1 Specs:
-Make: Cummins
-Model: 6BT5.9-M
-Fuel: Diesel
-Engine Power: 220hp
-Type: Inboard
-Drive Type: Direct
-Year: 2004
-Engine Hours: 4,304
Engine #2 Specs:
-Make: Cummins
-Model: 6BT5.9-M
-Fuel: Diesel
-Engine Power: 220hp
-Type: Inboard
-Year: 2004
-Engine Hours: 4,300
Total Engine Power: 440 hp
Cruising Speed: 8 kn
Maximum Speed: 11 kn
Tanks
Fuel Tank Capacity: 580 gal
Water Tank Capacity: 300 gal
Holding Tank Capacity: 60 gal
Other
Heads Count: 2
Drive Type: Direct
Boat Class: Aft Cabin, Motor Yachts, Flybridge
Miss Rita 2.jpg
Miss Rita 3.jpg
Miss Rita 4.jpg
Miss Rita 5.jpg
Miss Rita 6.jpg
Miss Rita 7.jpg
Miss Rita 8.jpg
Miss Rita 9.jpg
Miss Rita 10.jpg
- Additional information
- ***2004 Heritage East 46 Aft Cabin CPMY- Walkthrough***

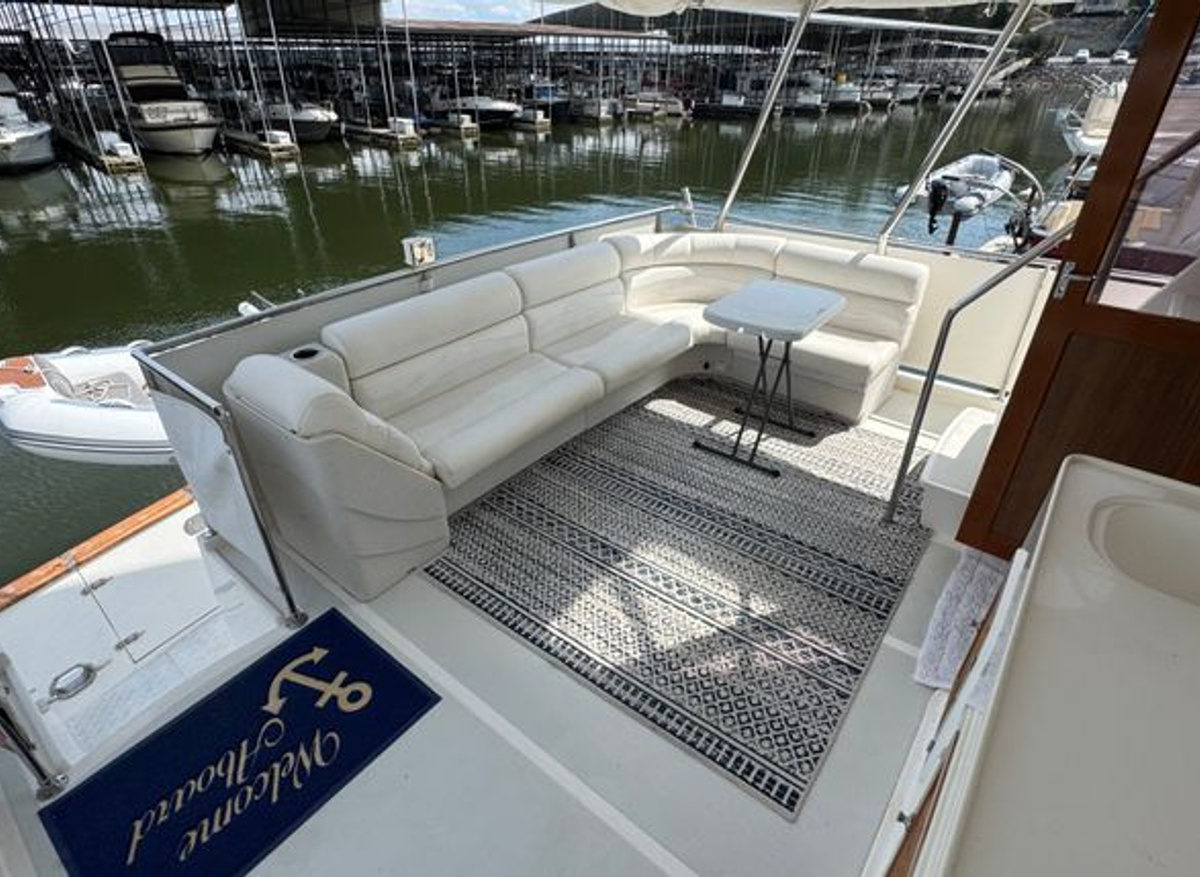

Step aboard from the swim platform through the transom door into the cockpit—perfect for boarding, fishing, storage, and access to the lazarette and davit. Four molded steps lead up to the aft sundeck with drop-down sun/rain shades, new seating with storage, wet-bar cabinet, and a hardtop. Another short set of molded stairs brings you to the flybridge with centerline helm, mate seat, excellent sightlines, and a four-sided enclosure in heavy isinglass.
Wide, safe side decks and high rails make bow work easy. Enter the salon to warm teak joinery, new insulating blinds, an L-settee with table, and a lower helm with side-door access. The galley is on the main level—hugely convenient underway or at anchor. Below, both staterooms feature island queens with ensuite heads & stall showers (fresh-water bidets). Utility and storage spaces are generous, including a lazarette, multiple built-ins, and a washer and dryer.
***2004 Heritage East 46 Aft Cabin CPMY***

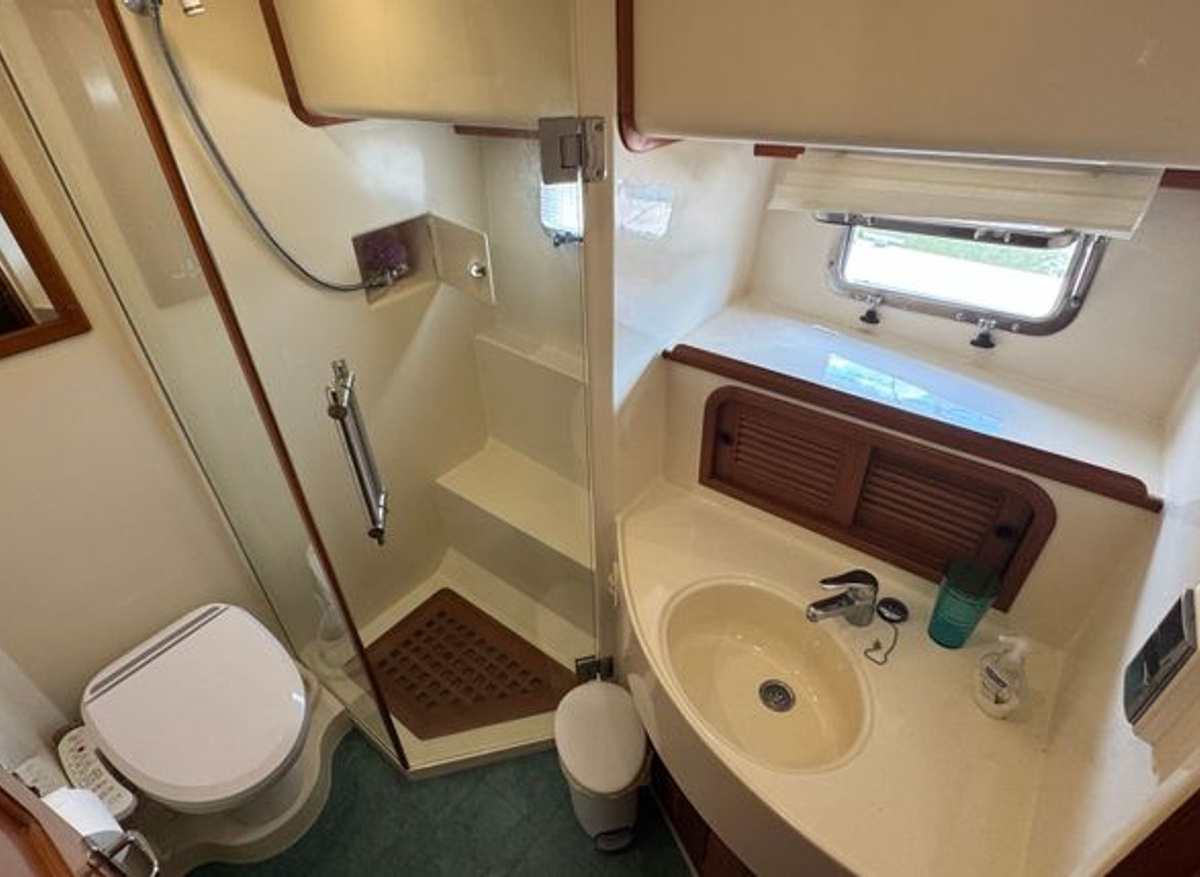

-2 staterooms / 2 heads (both with stall showers & fresh-water bidets)

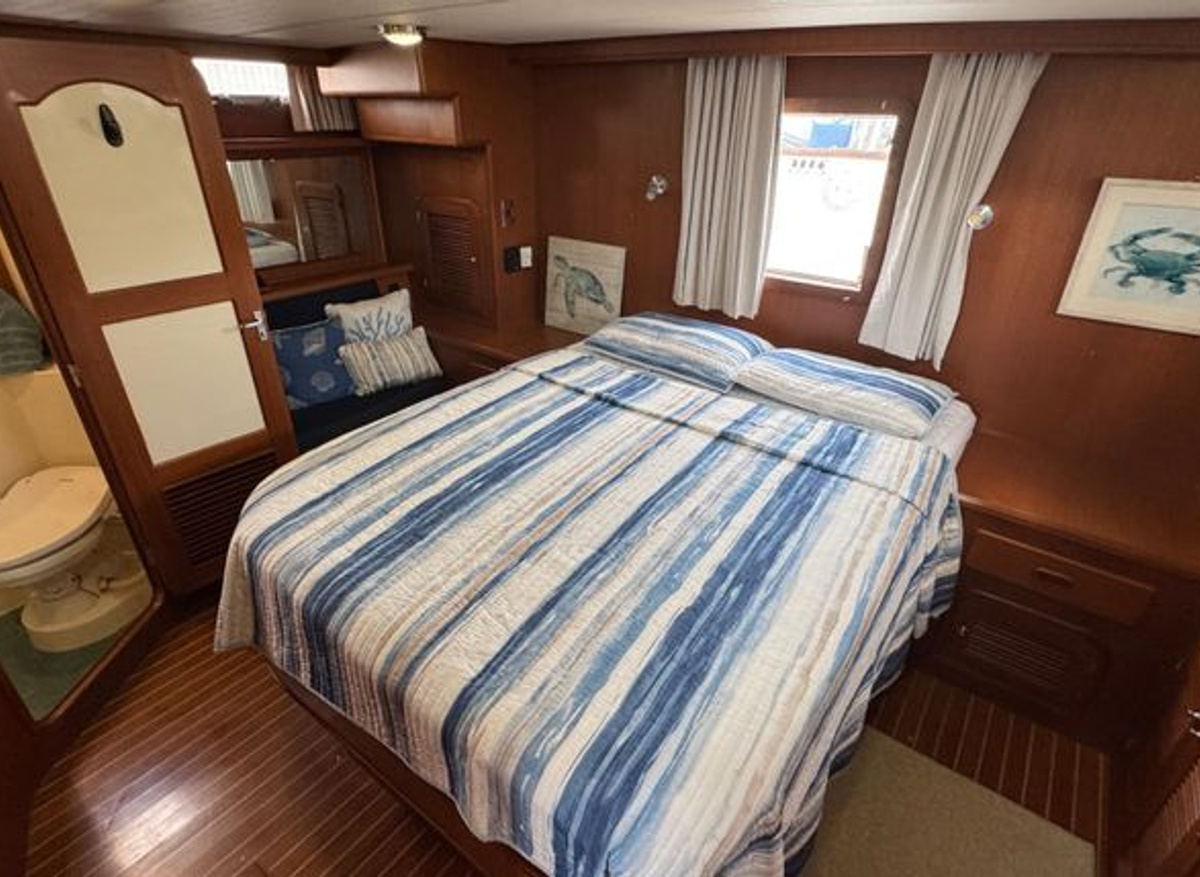

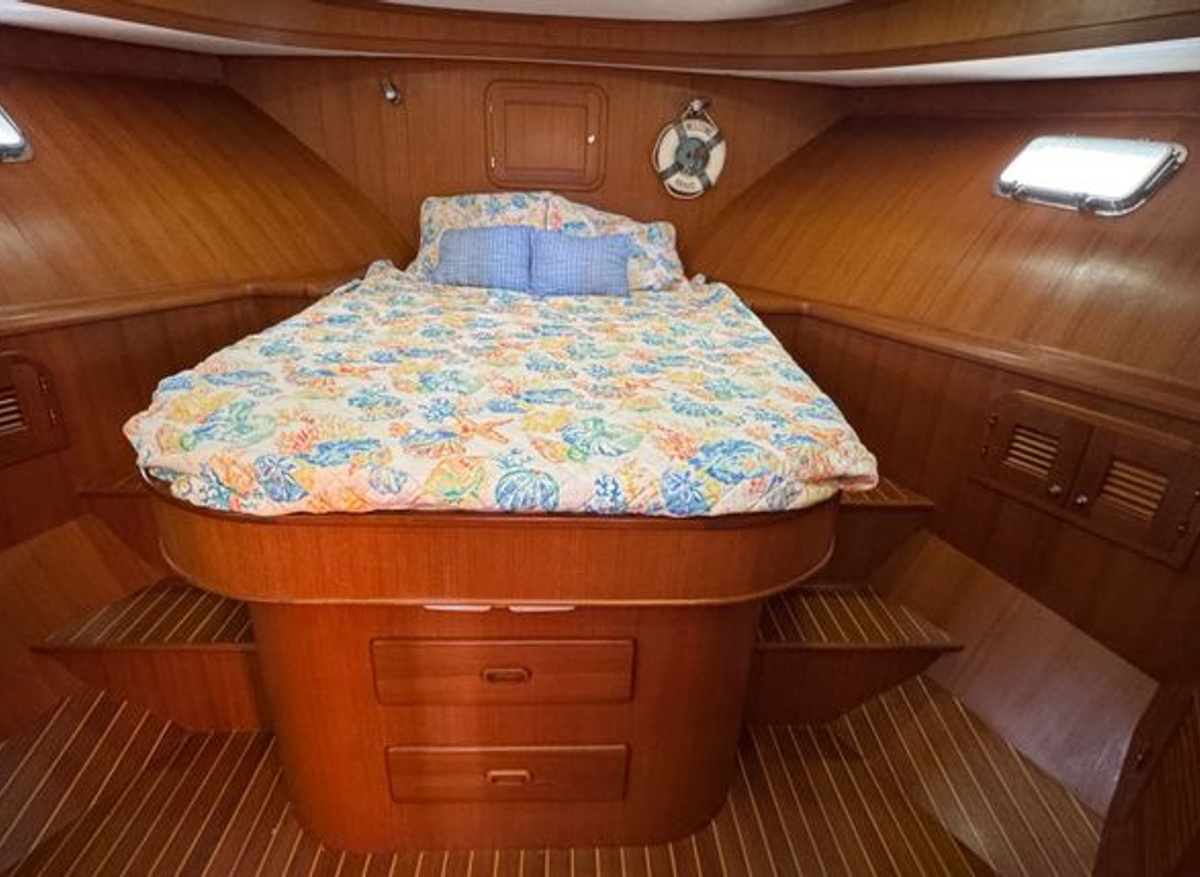

-Master: Centerline queen, private head/shower, lockers & drawers
-Guest: Custom V-berth configured as a 2nd master suite, large head/shower
-Salon: L-settee & weighted dining/coffee/cocktail table
-Utility room: Splendide Combomatic 2000 washer/dryer (per build spec)
-Teak & holly soles throughout (salon carpeted), crown moldings, quality joinerwork
-New salon insulating blinds; custom drapes/valances; courtesy lights at steps

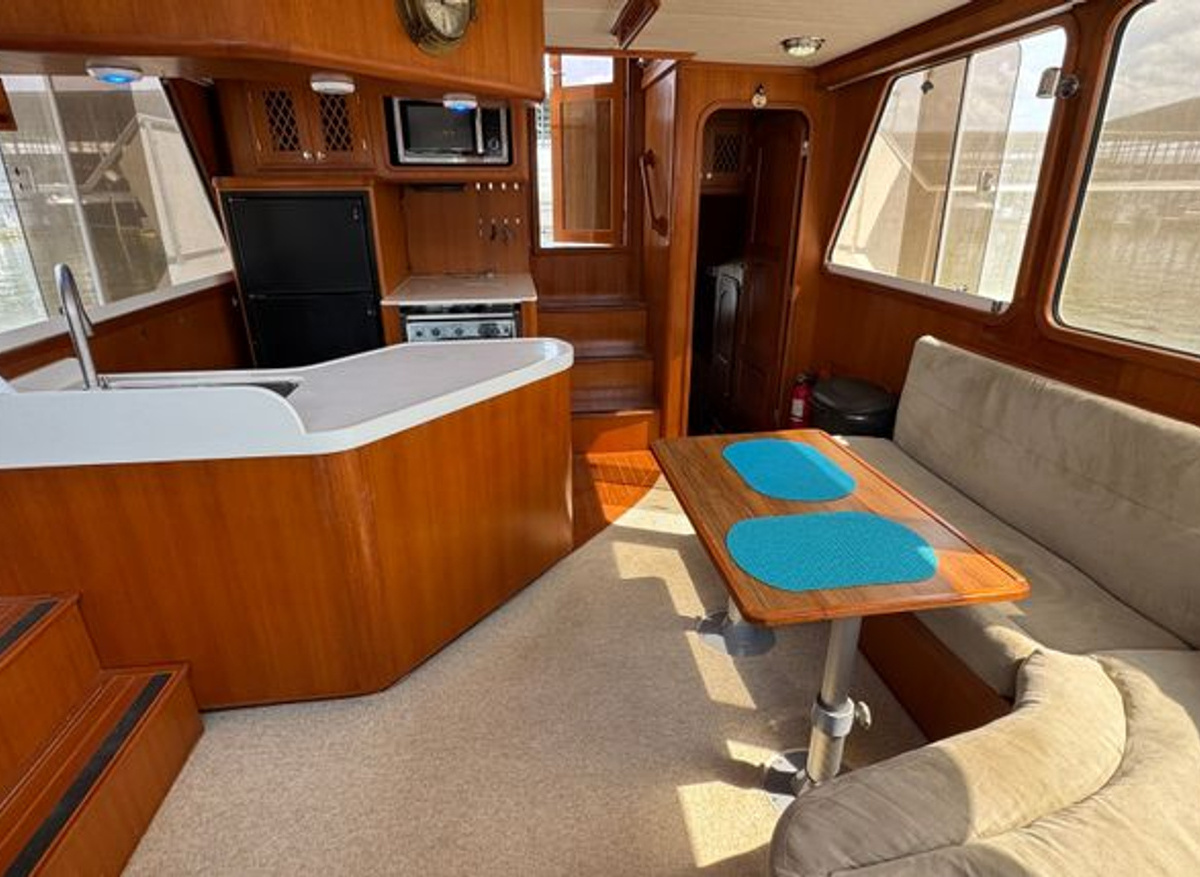

***2004 Heritage East 46 Aft Cabin CPMY- Salon***
-Lower helm w/ full Cummins instrumentation, fuel gauges, gen controls
-Starboard sliding side door to decks (great for single-handling)
-Built-in storage under side decks; concealed wireways
-Insignia 24" LED TV/DVD; Sony AM/FM/CD/XM with 4 speakers

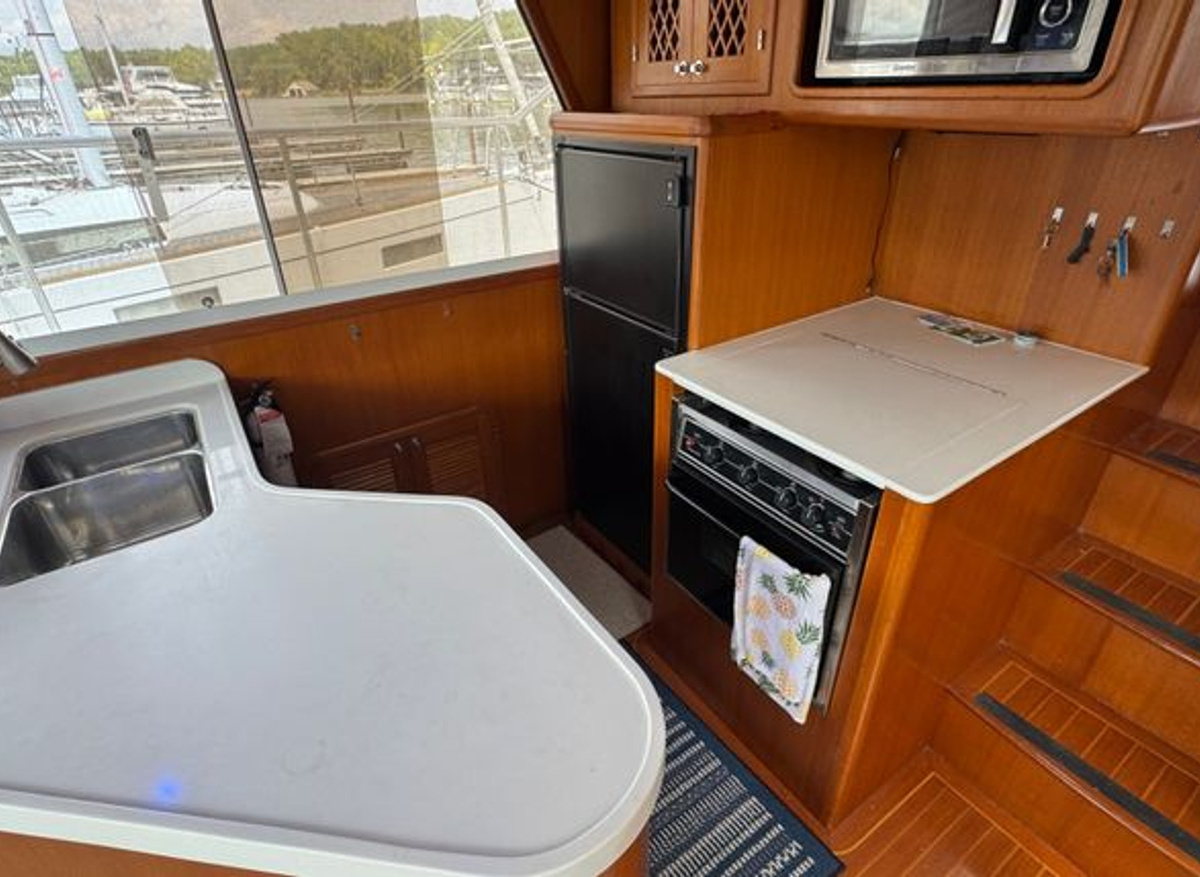

***2004 Heritage East 46 Aft Cabin CPMY***
-One-piece solid-surface countertop & backsplash
-Double stainless sinks w/ single-lever faucet
-Princess/Seaward 3-burner propane cooktop & oven (2 tanks)
-Refrigerator/Freezer (Taylor Tundra) + 10 cu ft auxiliary freezer
-Sharp microwave, pot/pan drawer, abundant cabinets
-Fresh-water & holding-tank gauges
***2004 Heritage East 46 Aft Cabin CPMY***
-One-piece solid-surface countertop & backsplash
-Double stainless sinks w/ single-lever faucet
-Princess/Seaward 3-burner propane cooktop & oven (2 tanks)
-Refrigerator/Freezer (Taylor Tundra)
-Sharp microwave, pot/pan drawer, abundant cabinets
-Fresh-water & holding-tank gauges
***2004 Heritage East 46 Aft Cabin CPMY- Mechanical***
-Twin Cummins 6BTA 5.9 (220 HP) | ZF transmissions 2.5:1
-Hours reported: (~4304 / 4300 hrs)
-Onan/Kubota 9 kW genset (~1425 hrs)
-Solar & Charging:
-(4) 380W solar panels = 1,520W w/ 2 controllers
-(5) 8D AGM batteries (installed Dec ‘22) ≈ 1,250Ah
-Idle Pro Prestolite 210A alternator w/ Balmar external regulator
-(2) Xantrex 2,500W inverter/chargers, 125A charge each
-Victron & Balmar battery monitors; separate dockside trickle charger
-Cooling/Heat/Water: 20-gal water heater (electric or port-engine heat)—always hot water underway
-Running Gear: Tides dripless shaft seals; Aquamet 22 shafts (2"); bronze 4-blade props (26x22); custom SS struts; cutlass bearings
-Exhaust: Centek wet exhaust w/ transom exit
-Bilge: Multiple Jabsco diaphragm pumps + Rule auto pump; manual emergency pump
-Solid Keel (~1’): added protection and tracking—“will save you”
***2004 Heritage East 46 Aft Cabin CPMY- Electrical***
-Dual 30A shore power (smart shore-power connectors) + (2) 30A cords
-Xantrex Pro-Watt 3000 inverter (per spec) & Intelli-Power 50/60A charger
-Complete LED interior/exterior lighting; engine-room lighting
-Full bonding system; transom & shaft zincs
***2004 Heritage East 46 Aft Cabin CPMY- Electronics***
-Primary/Recent
-Garmin 12" touch MFD w/ Bluetooth
-Garmin 18" Doppler Fantom radar (very low-draw 40W, 48 NM
-Raymarine ST60 digital depth
-ST8001 autopilot w/ wireless remote
-VHF suite: Standard Horizon RAM3 dual-station, Quest+ (lower), Matrix AIS/GPS (upper) (AIS linked to Raymarine)
-ACR EPIRB (mounted)
-Seatel SAT-TV domes, Ritchie compass

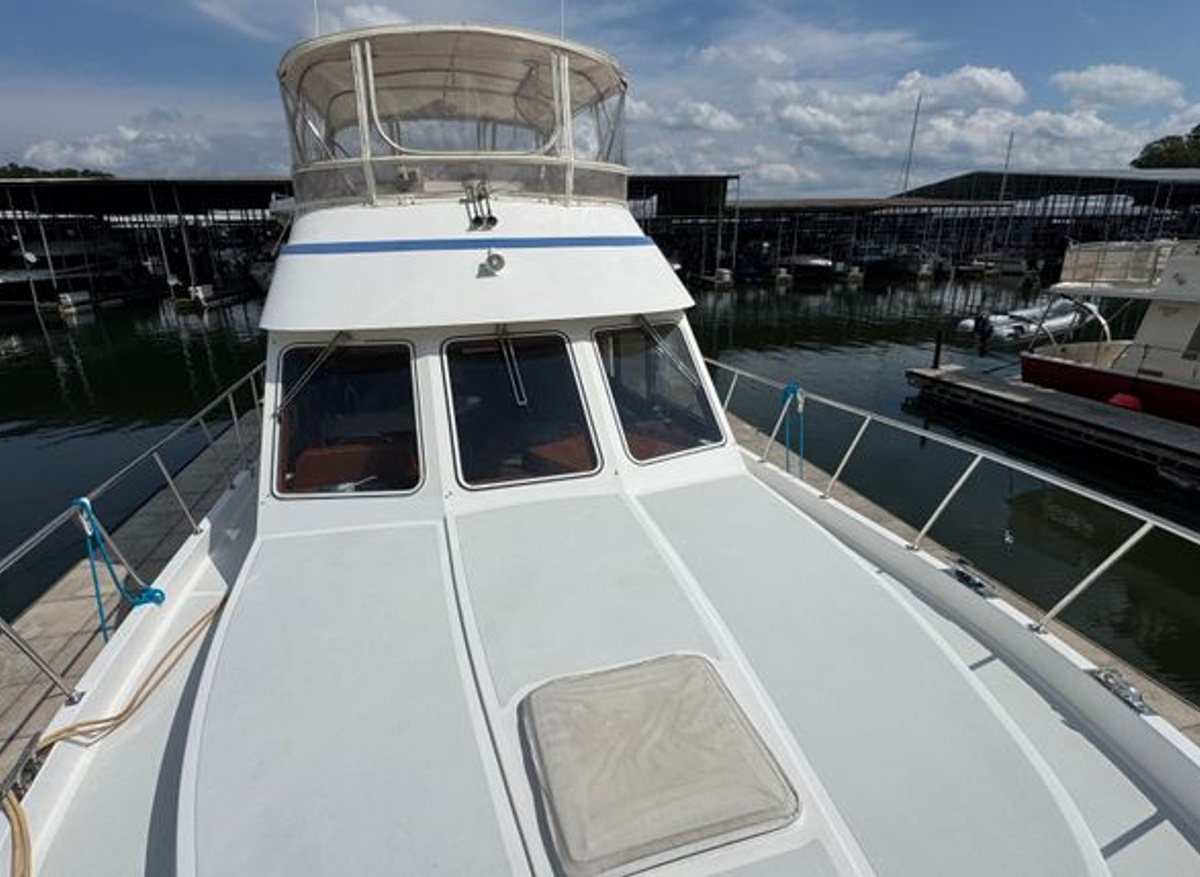

***2004 Heritage East 46 Aft Cabin CPMY- Deck Equipment***
-Cockpit with lazarette storage, teak decking, transom door, shower (H/C)
-Olsson stainless dinghy davit with electric winch (in cockpit)
-Aft sundeck hardtop with 3 quick-deploy sun/rain shades; wet-bar cabinet; new seating

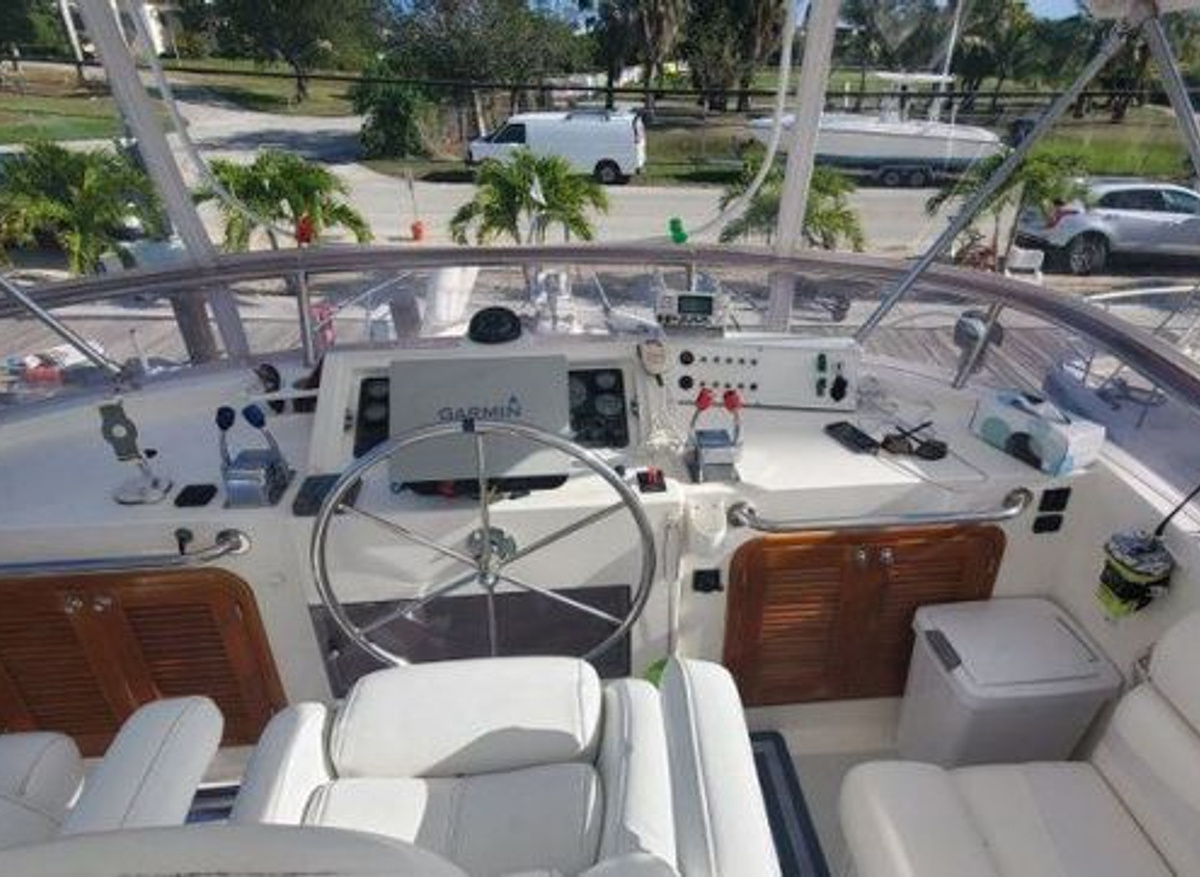

-Flybridge: centerline helm, mate seat, molded seating w/ stowage, bimini + 4-sided enclosure (heavy isinglass, folds—not rolled)
-Side decks: wide with high 316L stainless rails; port/starboard boarding gates
-Swim platform with telescoping ladder; varnished teak cap rails
-Canvas: ~3 years old (heavy-duty isinglass)
-New seating on aft deck and bridge
-Ground Tackle
-Mantus 65 lb primary
-180’ chain (marked every 30’) + ~120’ backup chain
-Muir Atlantic 1200 12V windlass, dual-station control, overload protection
-SS/UHMW roller on molded pulpit, SS Sampson post
***2004 Heritage East 46 Aft Cabin CPMY- Safety Equipment***
-EPIRB (mounted)
-Navigation/anchor lights (LED)
-Dual horns, wipers, high rails, wide side decks
-Bilge pumps as detailed above
-Bonding/zincs throughout

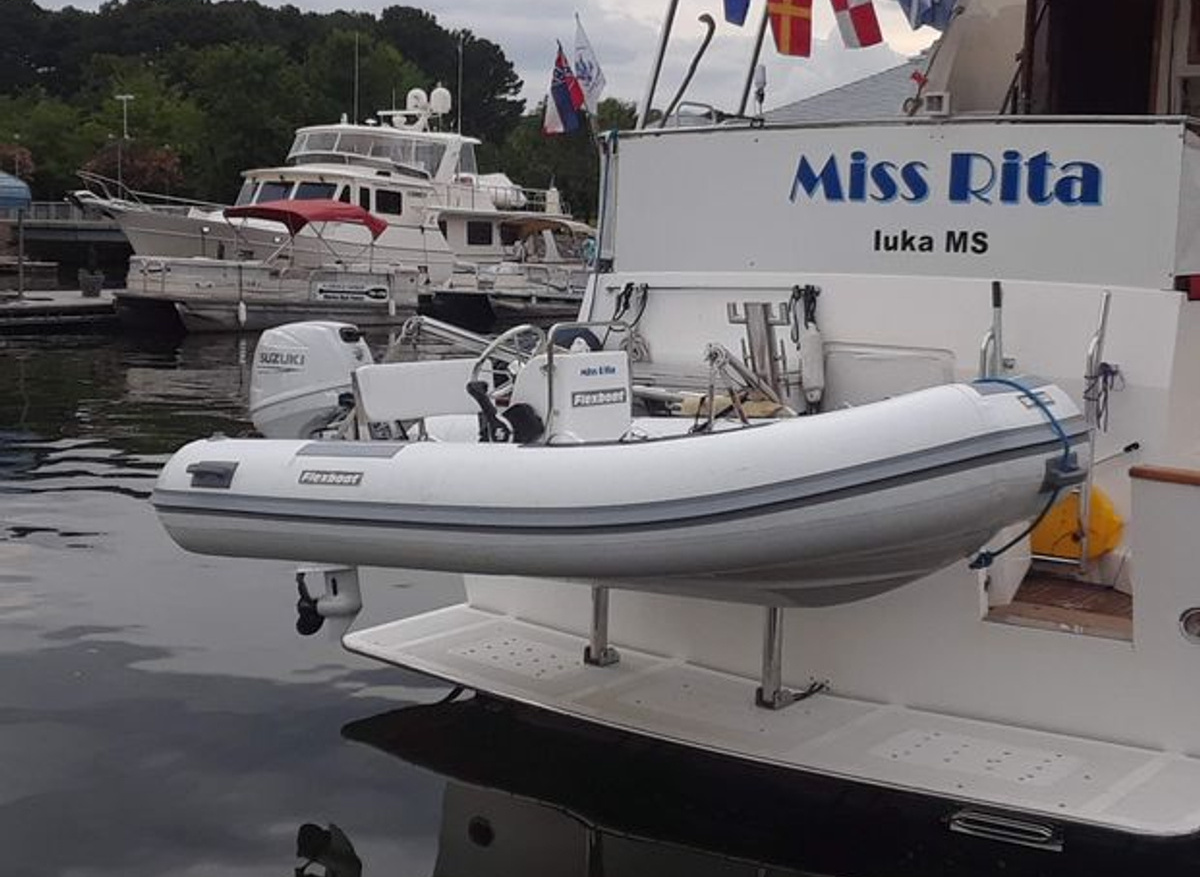

-2023 Gala 11' Tender with 20hp Yamaha Outboard
-2023 Gala 11’ RIB w/ console
-Yamaha 20HP
-Custom rapid-launch davit system (launch in ~1 minute)
***Disclaimer***
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
***Additional Units Included***
-2023 Gala
